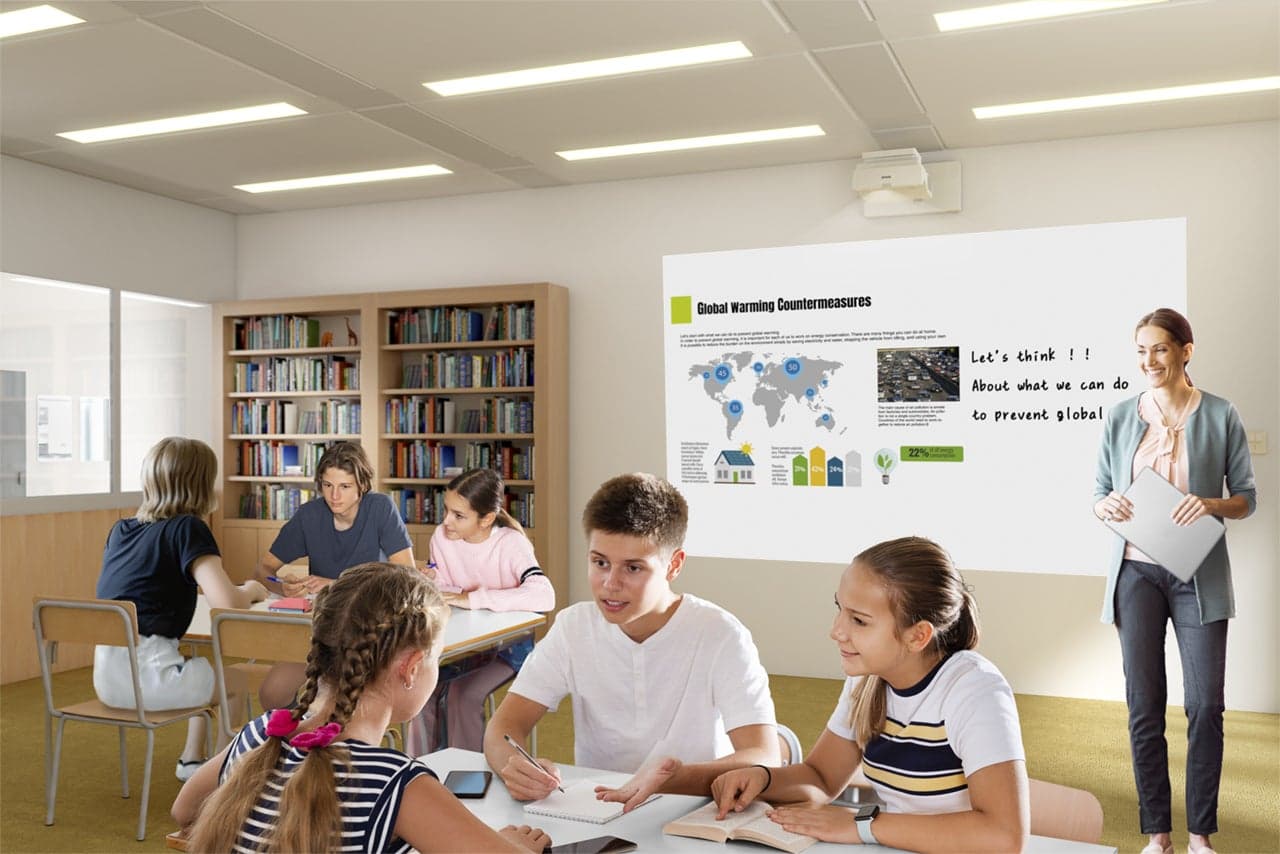

Interactive FHD display for any room
49-100" UST display for unrestricted viewing (no shadows/reflections)
SKU: V11HA78080

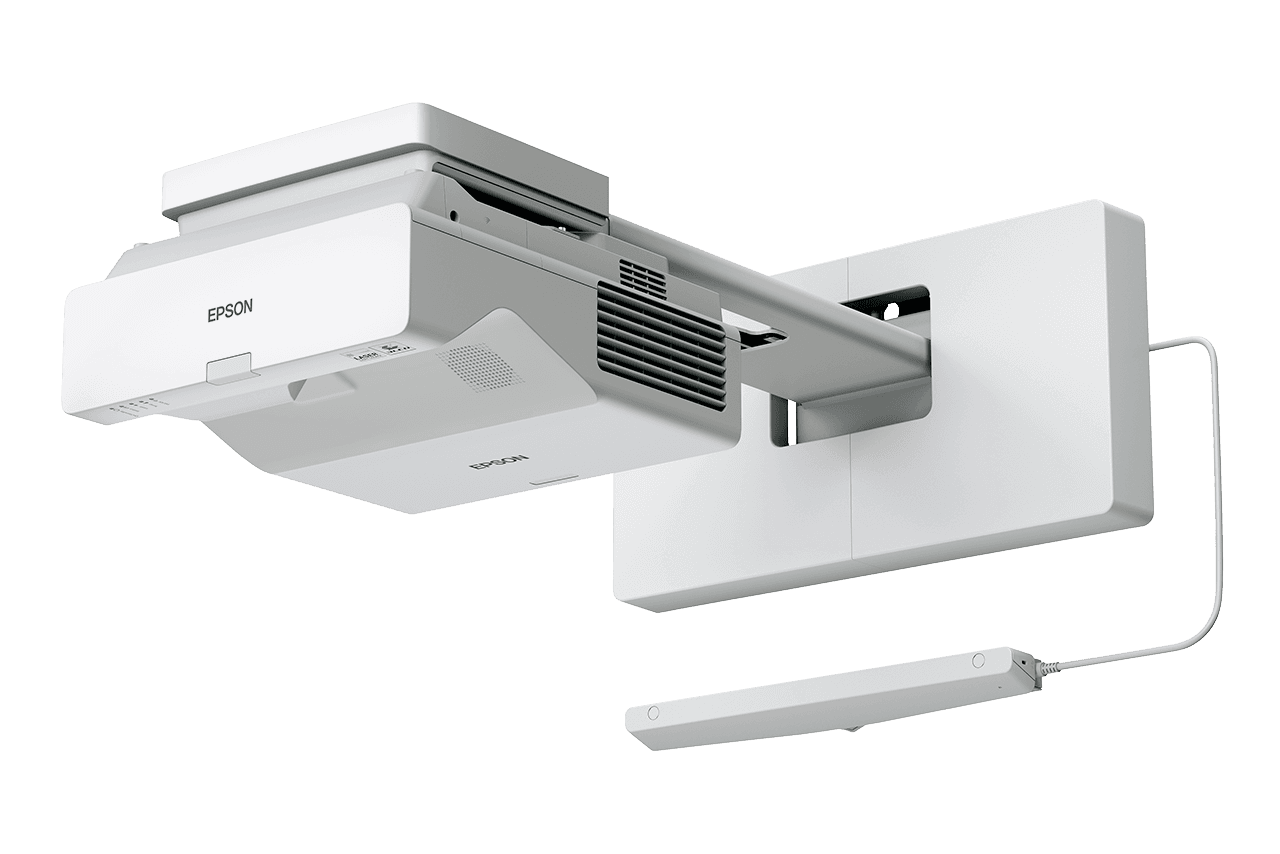

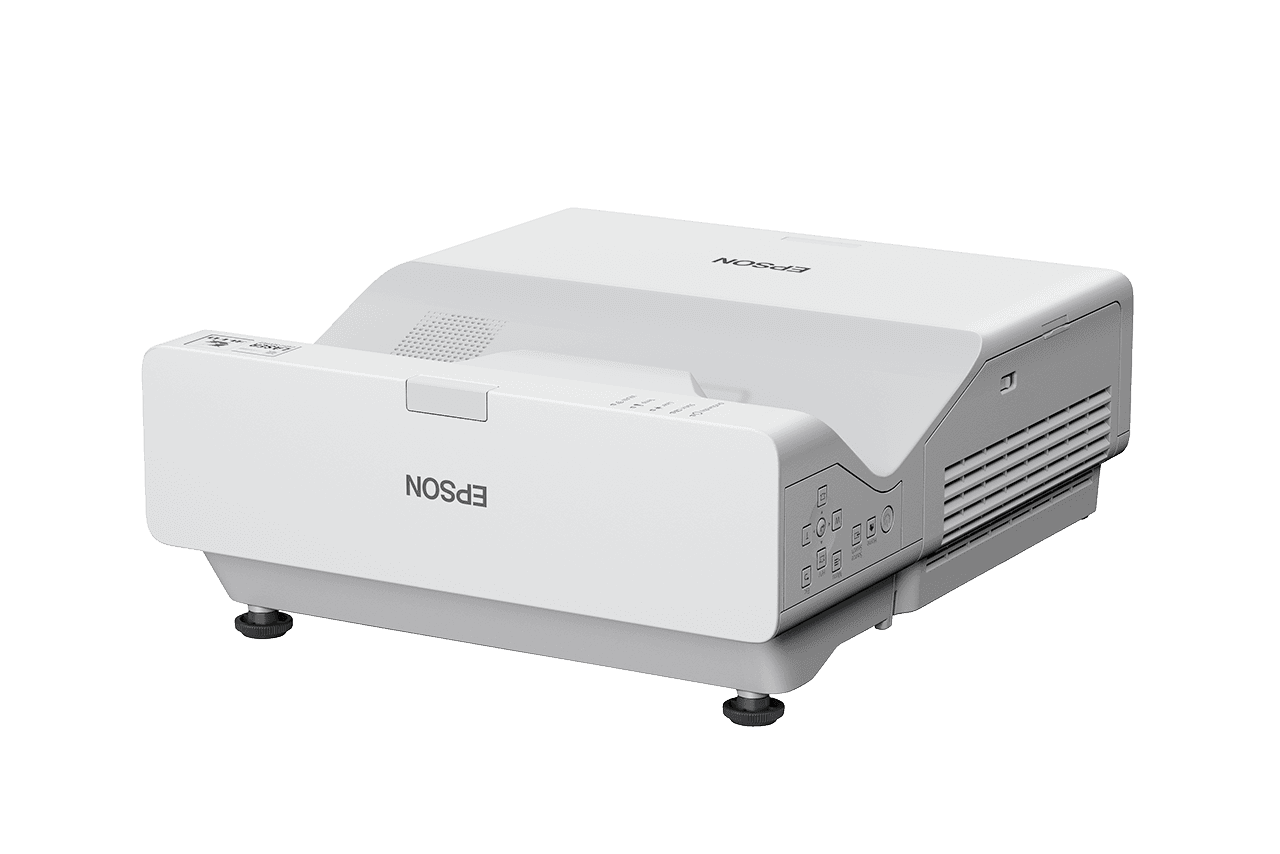

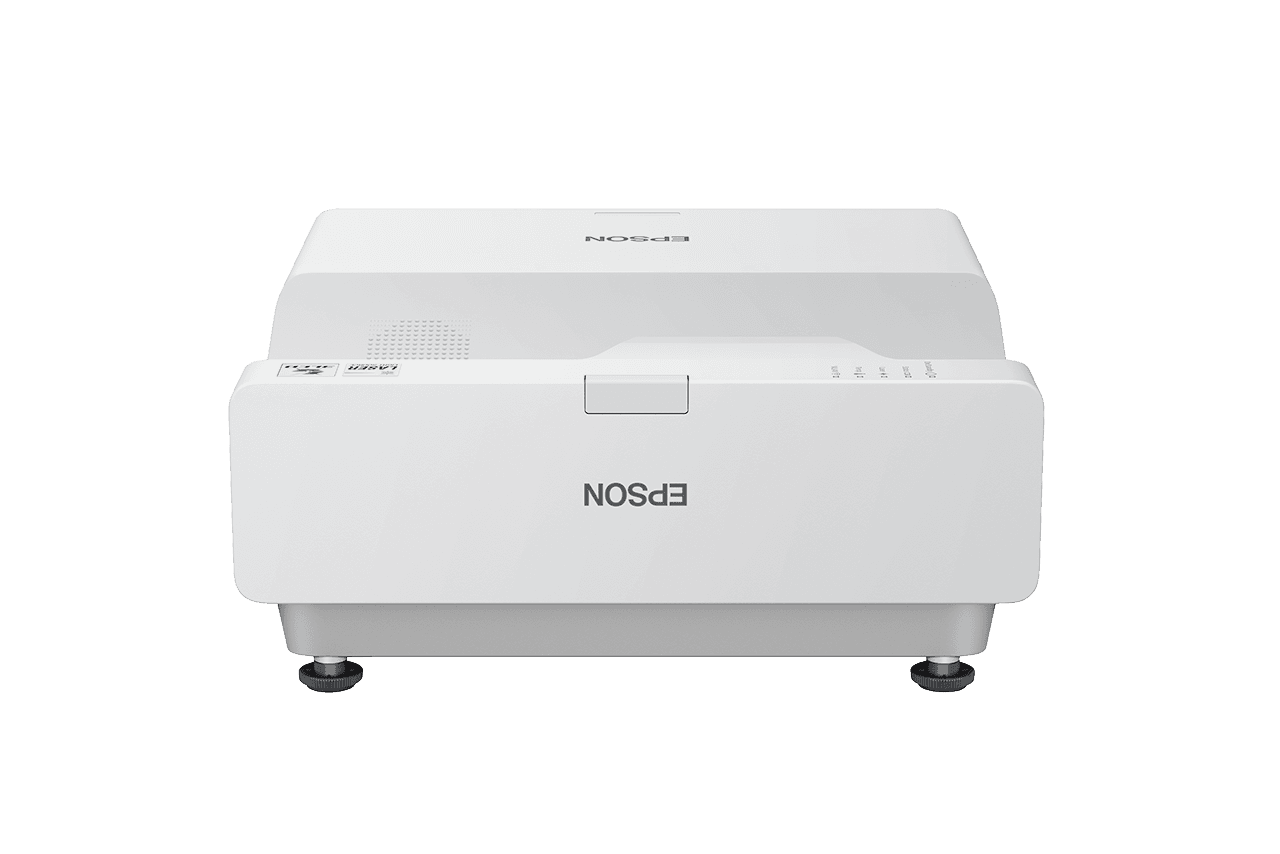

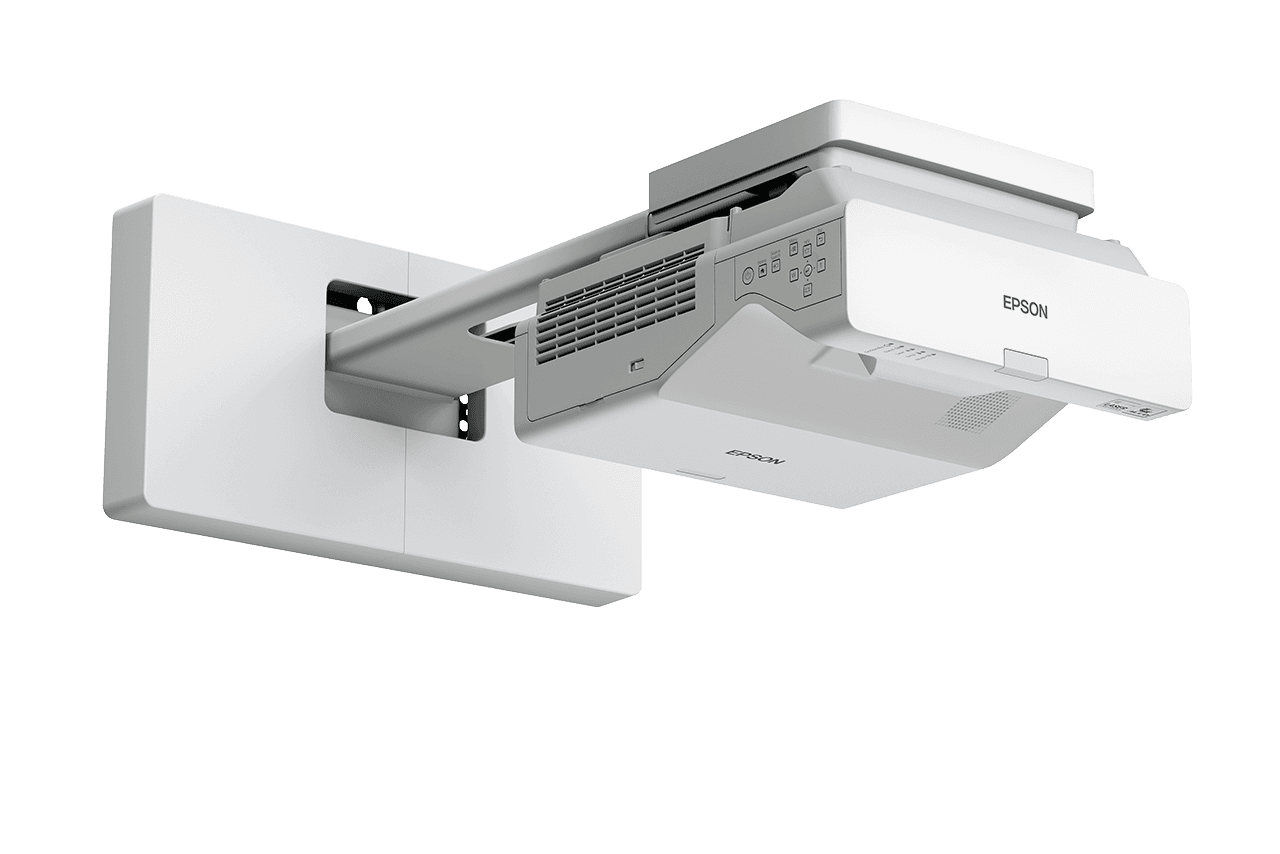

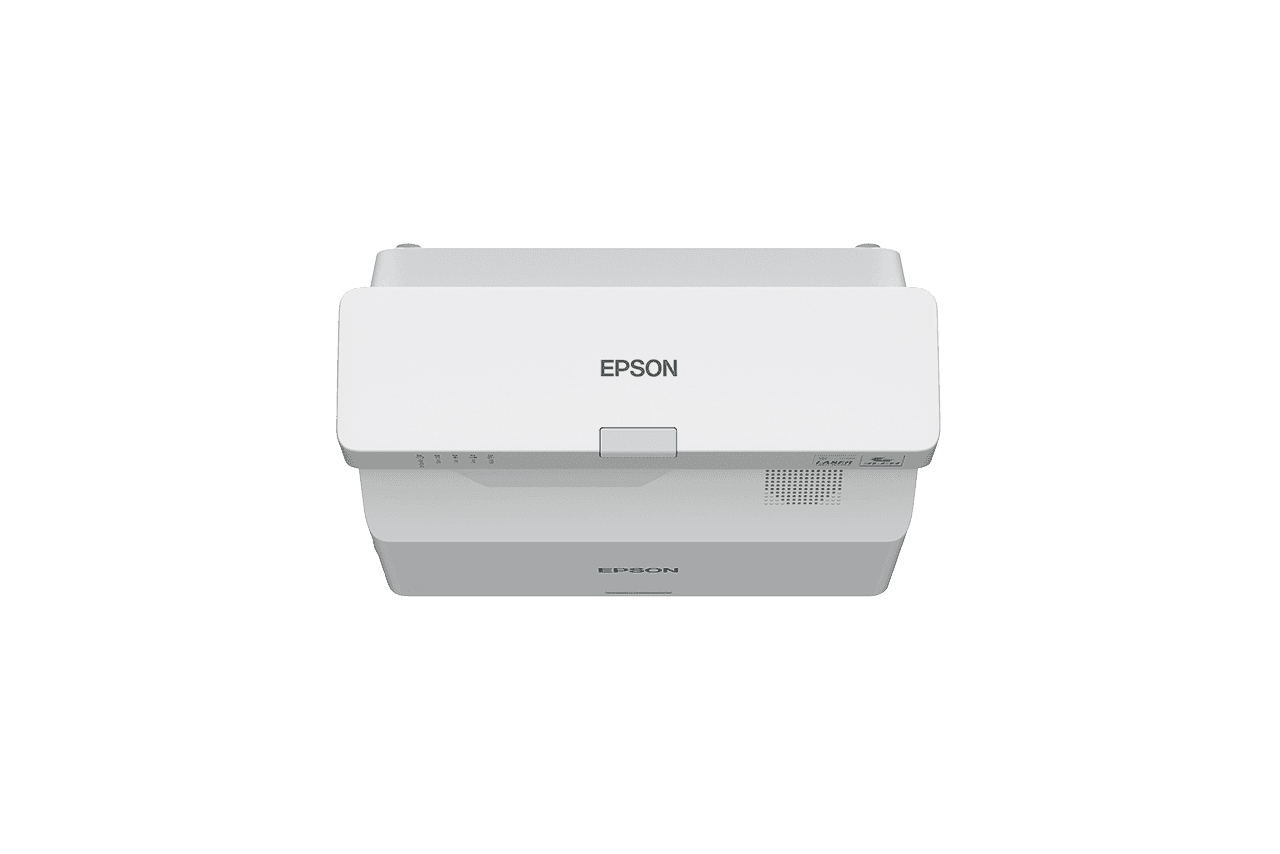

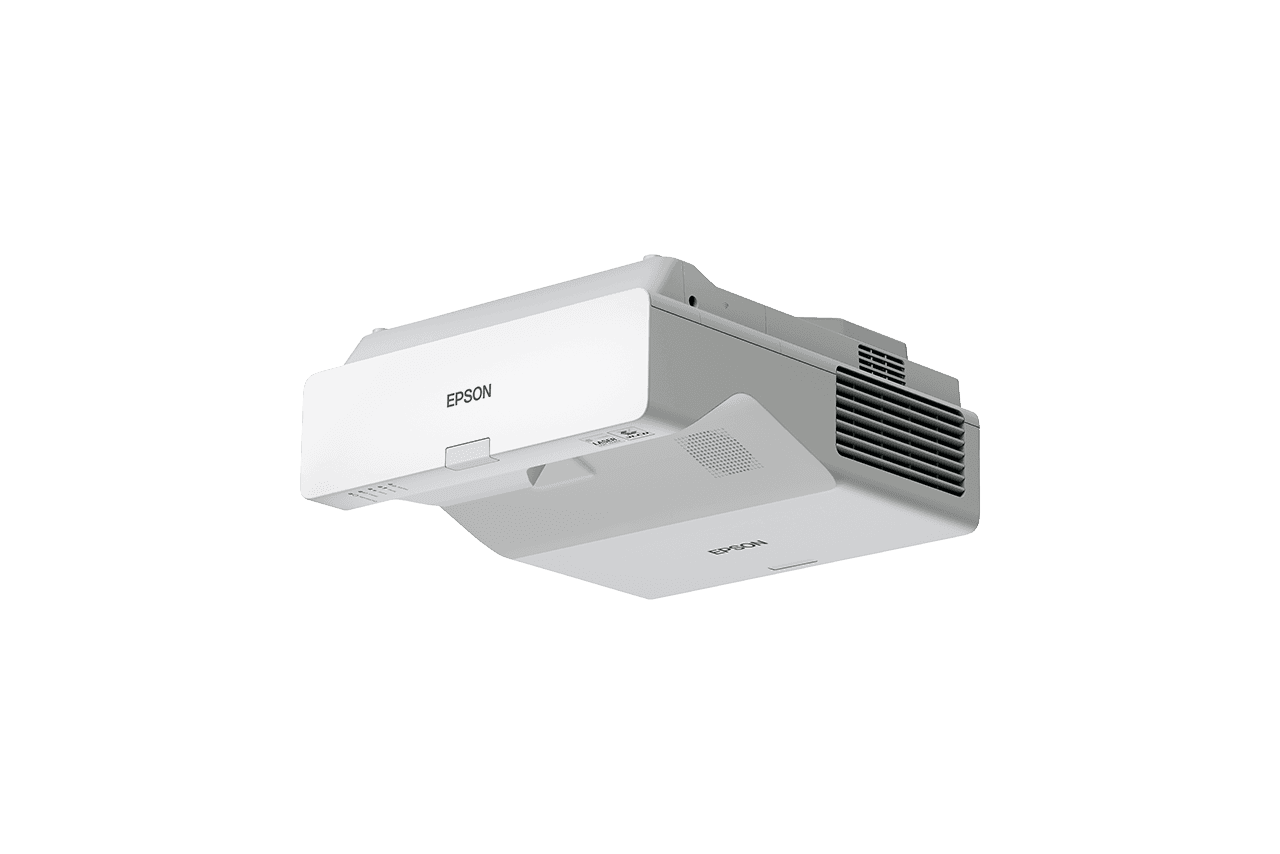

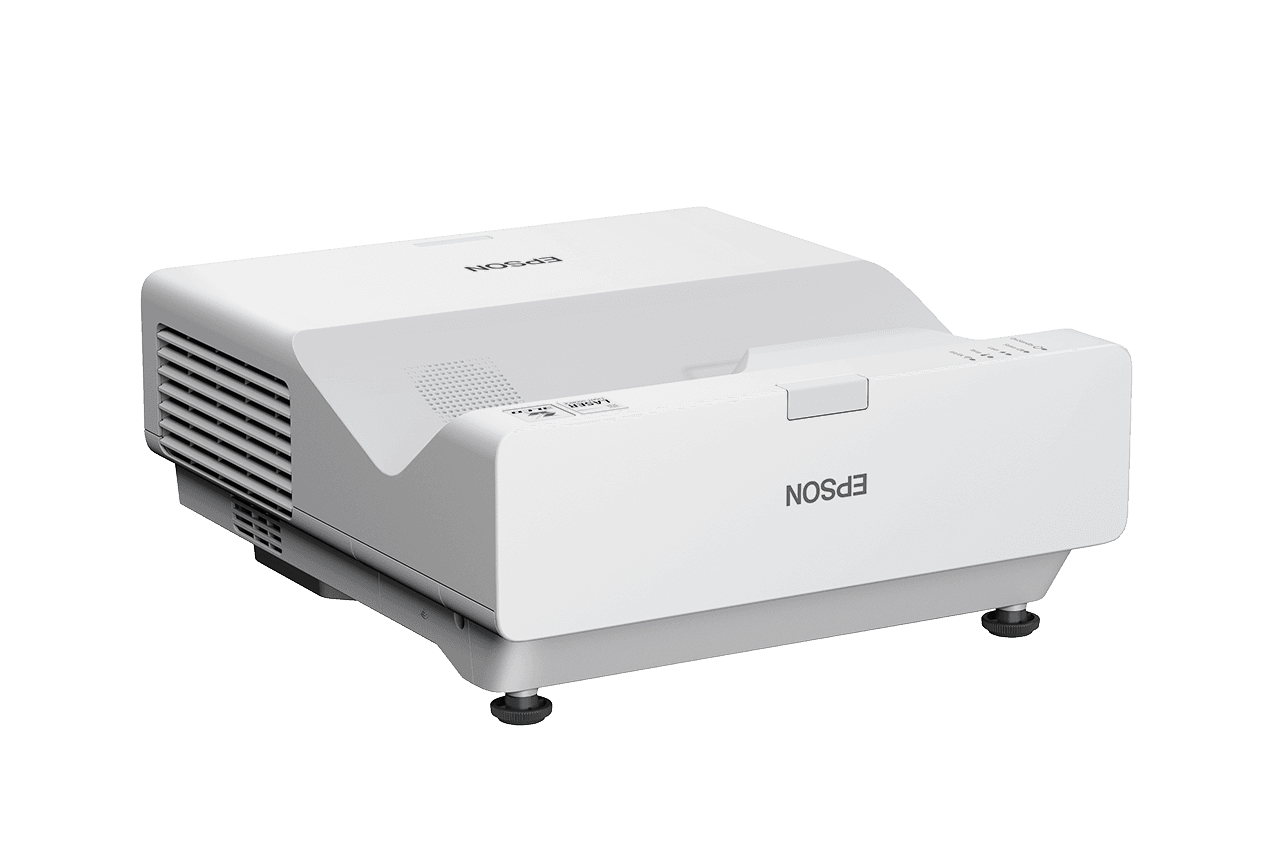

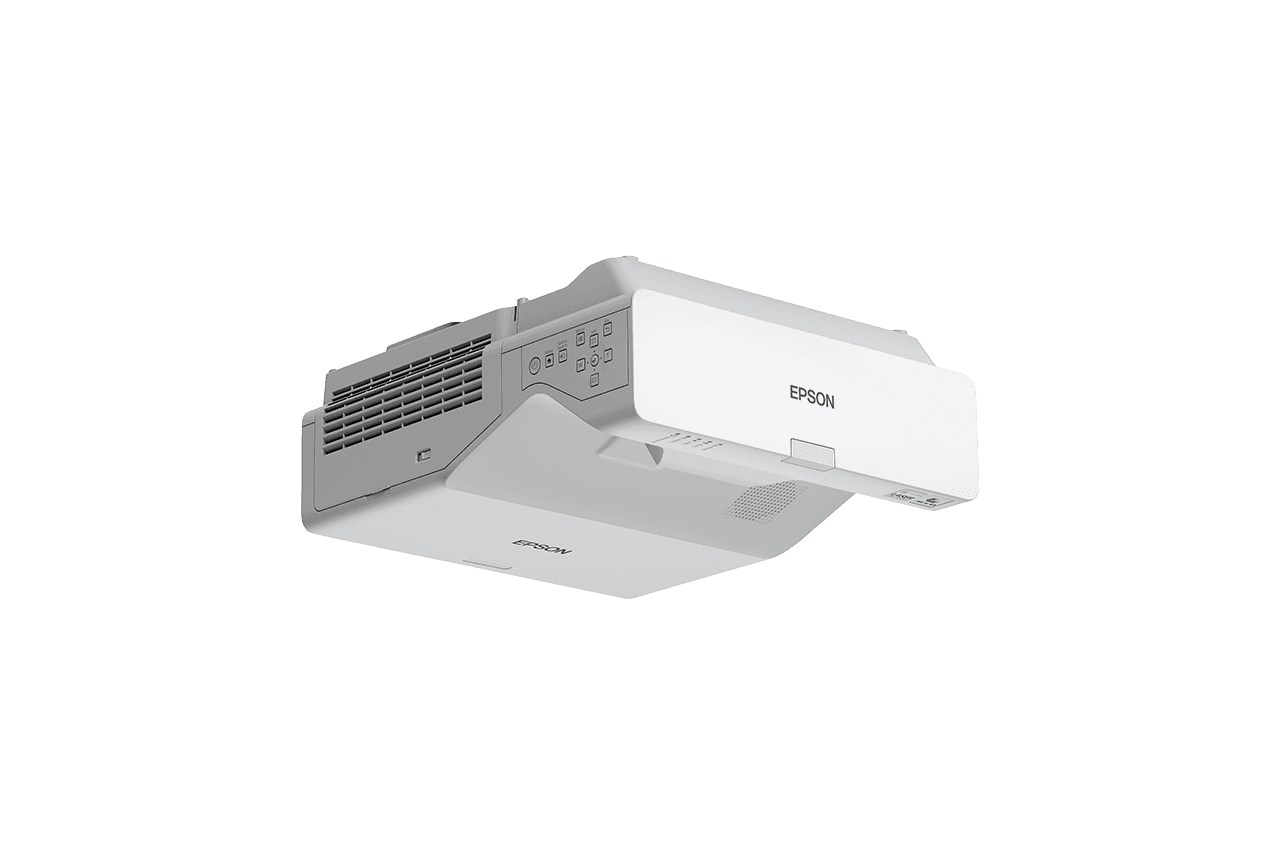

EB-770FI

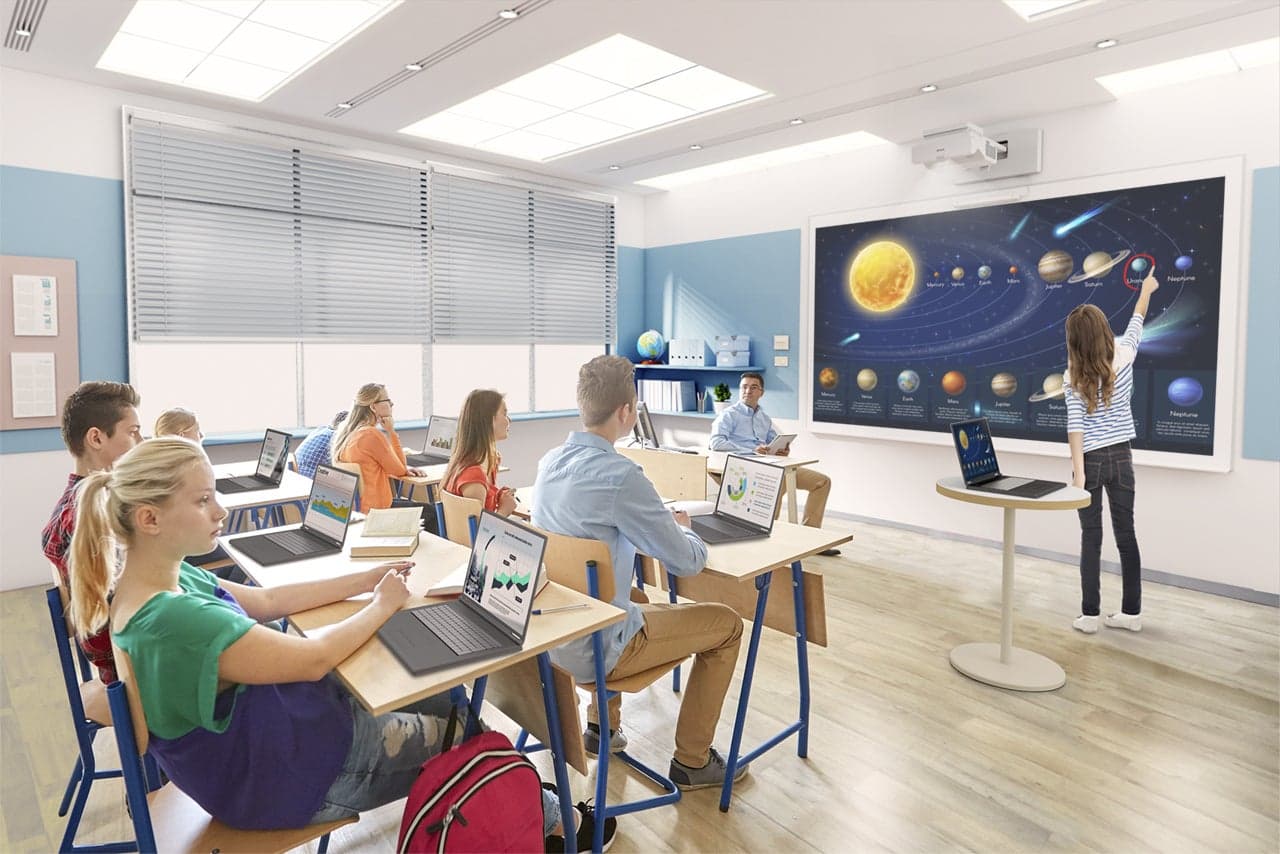

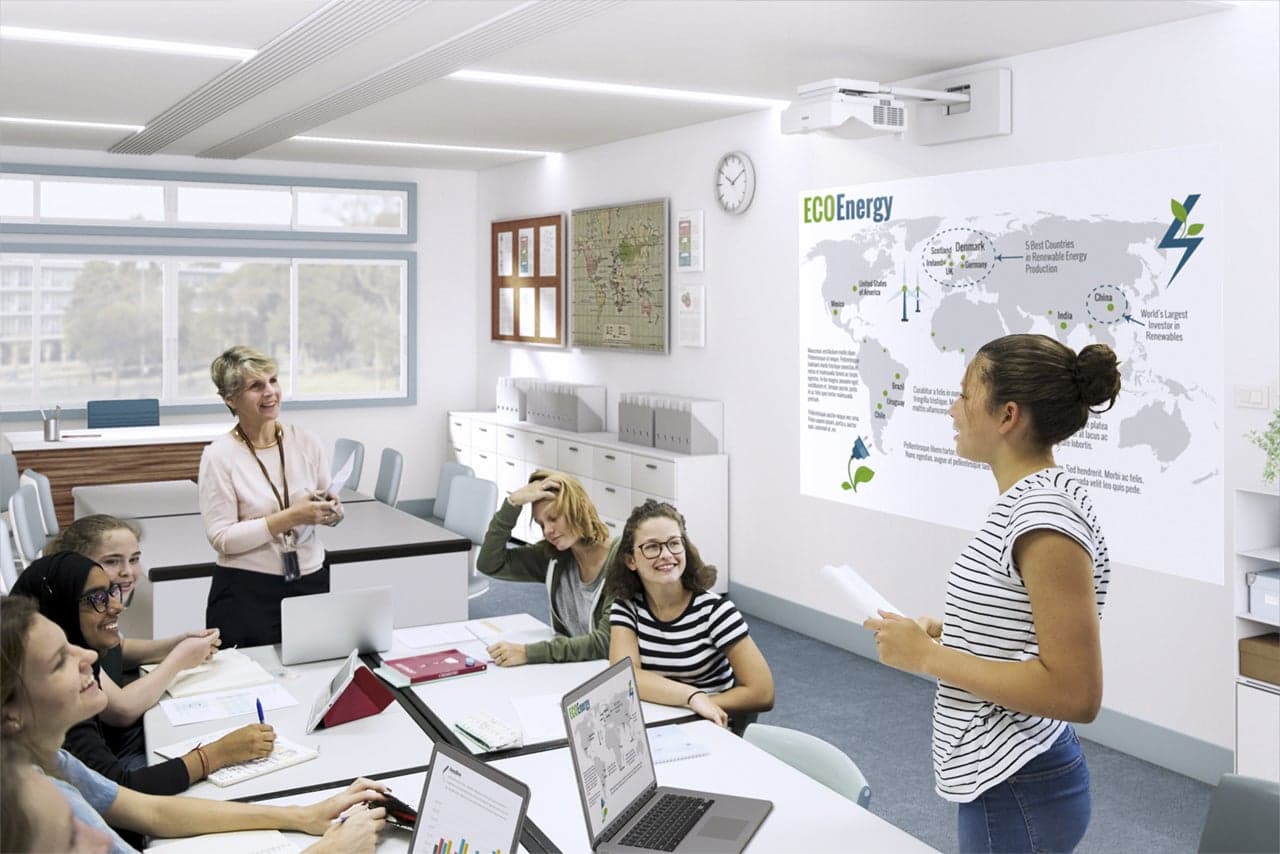

Best for collaborative workspaces and classrooms. Full HD ultra-short-throw interactive laser display with 4,100 lumens.
- 49-100" FHD touch display
- 4,100 lumens CLO laser
- Wireless connectivity
Features
Bright and energy efficient laser
4,100lm CLO with 3LCD technology for brighter colours at only 205W

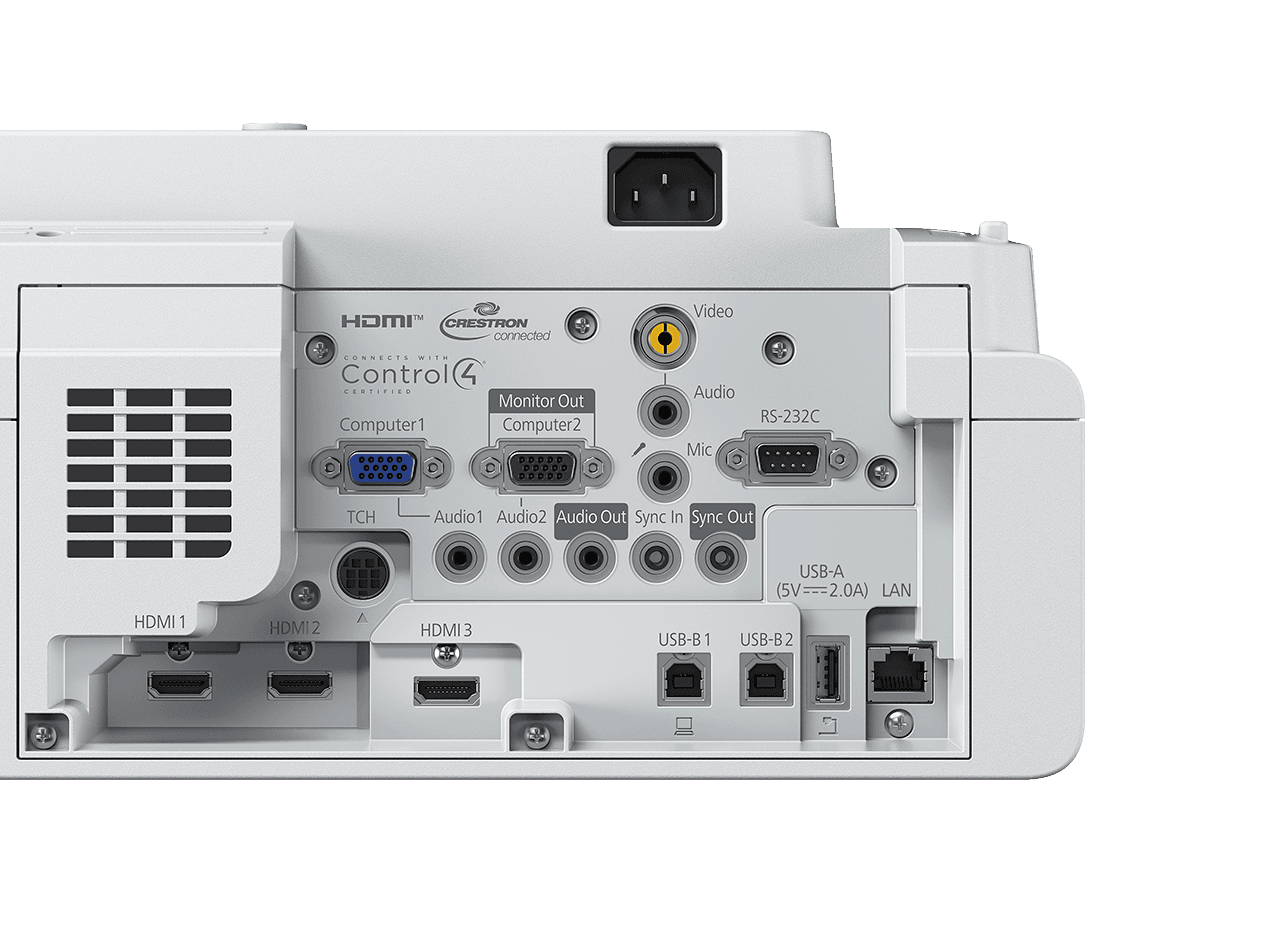

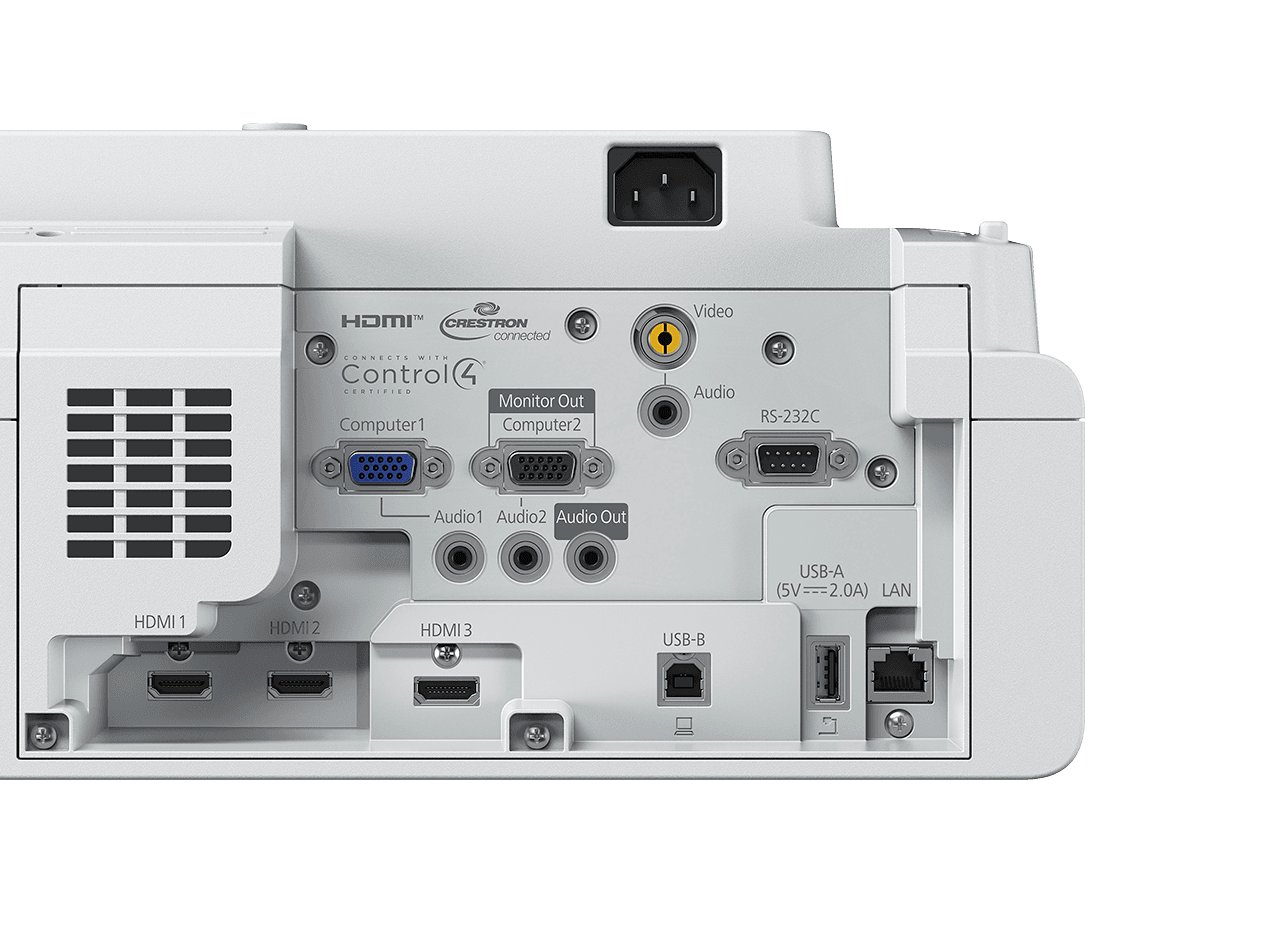

Effortless connectivity options
Auto-on, wired / wireless display with USB 2A output for smart sticks
Simple to use and built to last
Virtually maintenance free with 5-year, 12,000hr warranty
Specifications
- Projector Colour
- White
- Heat Dissipation
- 895 BTUperhour
- Loudspeaker
- 16 W
- Noise Level -Normal
- 37 dB (A)
- Noise Level -Economy
- 27 dB (A)
- Options
- Safety wire set

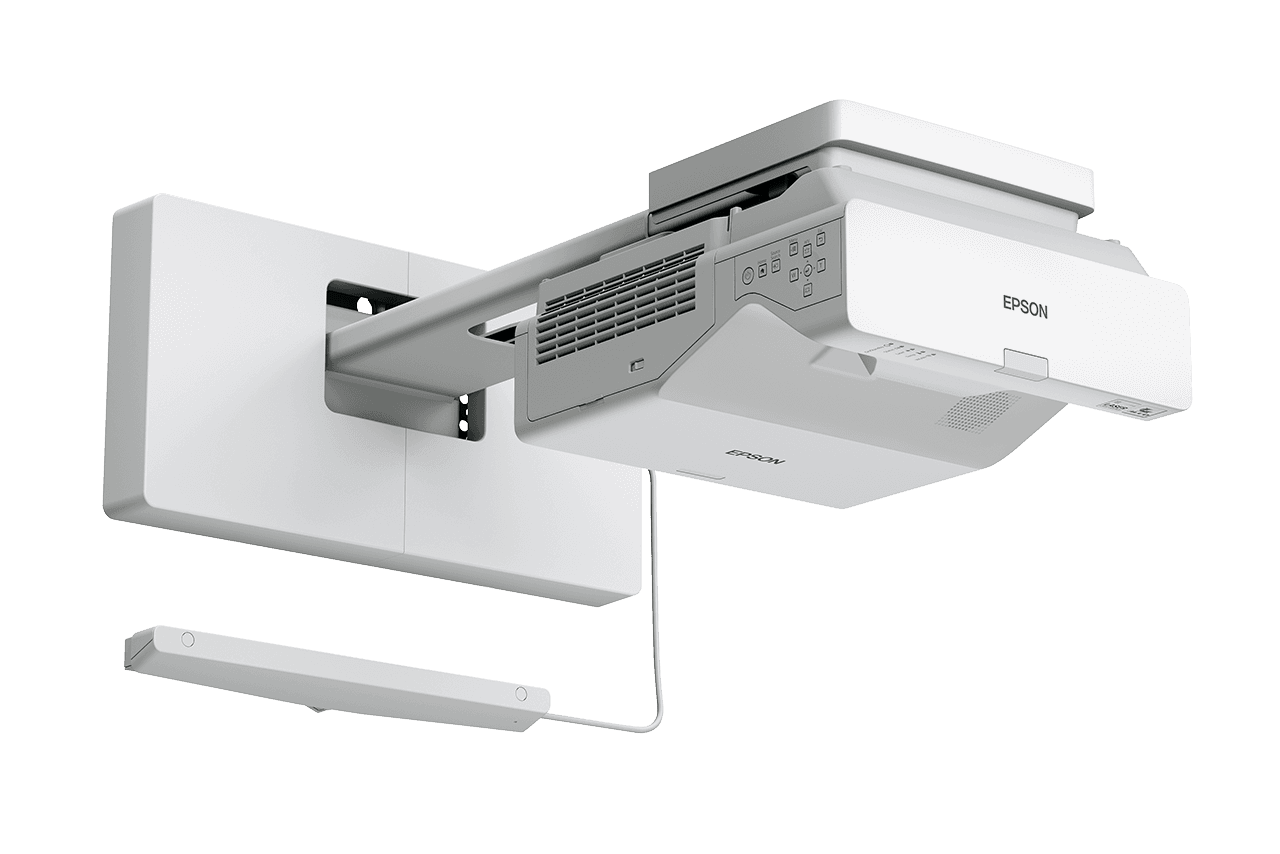

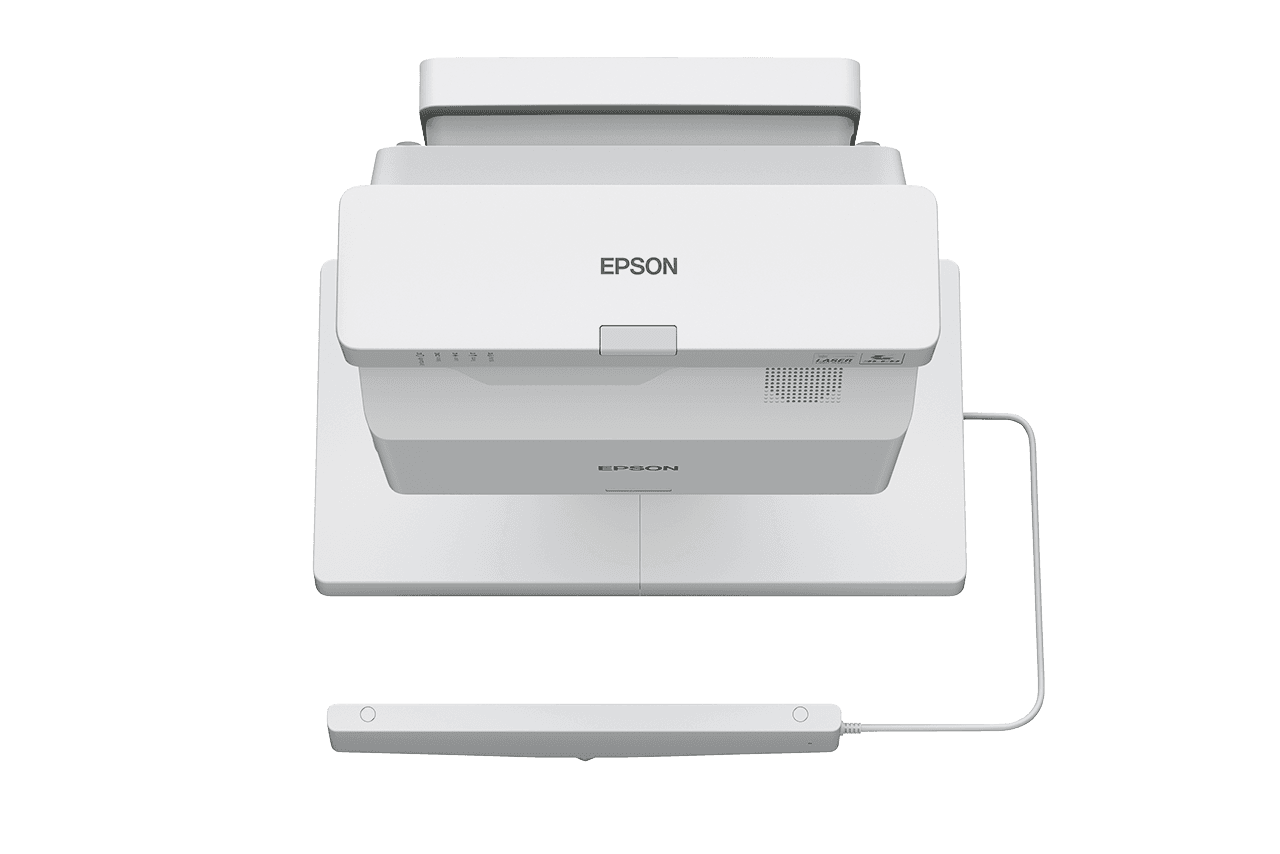

- Positioning
- Ceiling Mounted, Desktop, Wall Mounted
- Power consumption -(Normal On-Mode)
- 199 W
- Power consumption- (Eco On-Mode)
- 141 W
- Power consumption -(Normal Peak-mode)
- 263 W
- Power consumption -(Eco Peak-Mode)
- 197 W
- Power consumption - (Energy saving standby)
- 0.5 W
- Product Dimensions
- 356 x 395 x 133 mm (Width x Depth x Height)
- Product Range
- E9
- Room Type / Application
- Meeting room / Classroom
- Single Unit
- ZN
- Supply Voltage
- 100 V - 240 V, 50 Hz - 60 Hz
- Supported Humidity - Operation (from)
- 20 %
- Supported Humidity - Operation (to)
- 80 %
- Supported Humidity - Storage (from)
- 10 %
- Supported Humidity - Storage (to)
- 90 %
- Supported Temperature - Operation (from)
- 0
- Supported Temperature - Operation (to)
- 40
- Supported Temperature - Storage (from)
- -10 °C
- Supported Temperature - Storage (to)
- 60 °C
- TCO Certified
- Yes
- LCD Panel (Type)
- 0.62 inches with
- LCD Panel
- C2 Fine
- Projection System
- 3LCD Technology, RGB liquid crystal shutter
- Resolution
- 1080p
- Android TV
- No
- Google TV
- No
- Included Software
- EasyMP Multi PC Projection, Easy Interactive Tools, Epson Projector Management
- Network Protocol
- HTTPS, IPv4, SNMP, IPv6, ESC/VP.net, PJLink
- Network Protocol (Projector)
- HTTPS, IPv4, SNMP, IPv6, ESC/VP.net, PJLink
- Interactivity
- Yes - pen and finger-touch
- Other features
- 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Built-in speaker, CEC compatible, Auto source search, Digital zoom, Direct Power on/off, Dual Pen Support, Easy OSD pre-setting, Document Camera Compatible, Email notification, Finger-touch support, iProjection App, iProjecton set-up by QR code, Wireless LAN capable, Whiteboard sharing function, Web Control, Web Remote, Ultra-wide display (16:6), Split-Screen-Function, Quick Corner, Schedule Function, Screen share, Screen Mirroring, Projection App for Chromebook, PC Interactive, PC free annotation, OSD copy function, Network projection, Network administration, Microphone input, Interactive OSD menu, Interactive Home Screen, Interactive, Instant on/off, Image Shift, Home Screen, Horizontal and vertical keystone correction, Mail notification function
- Projector control
- Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
- Sealed Light Source Module - Yes
- No
- Sealed Light Source Module - IP5X rated
- n/a
- Sealed Optical Engine - Yes
- No
- Sealed Optical Engine - IP5X rated
- n/a
- Security (Visual product)
- Kensington lock, Control panel lock, Security cable hole, Padlock, Wireless LAN security, Wireless LAN unit lock, Password protection, Password lock
- Video Colour Modes
- Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM
- Colour Light Output - Lumens
- 4100 Lumens
- Colour Light Output - Luman (economy) in accodance with
- 2800 Lumens
- Colour Light Output Testing Standard
- In accordance with ISO 21118:2012
- Colour Reproduction (Projector)
- Upto 1.07 billion colours
- Colour Video Processing
- 10 Bits Color
- Contrast Ratio - Ratio:1
- 5000000
- Contrast Ratio - Absolute black
- Absolute black
- High Definition
- Full HD
- Keystone Correction Type (Horizontal)
- manual
- Keystone Correction Angle (Horizontal)
- 3
- Keystone Correction Type (Vertical)
- manual
- Keystone Correction Angle (Vertical)
- 3
- Laser Lightsource -Durability High
- 20000 hr
- Laser Lightsource -Durability Eco
- 30000 hr
- Light Source (Visual product)
- Laser
- White Light Output - Lumens
- 2800 Lumens
- White Light Output - Lumens (economy) in accodance with
- 2800 Lumens
- White Light Output Testing Standard
- In accordance with ISO 21118:2020
- Interchangeable Lens
- No
- Lens
- Optical
- Lens (varies by lens)
- n/a
- Lens Shift (varies by lens)
- n/a
- Mechanical shutter
- No
- Offset
- 5
- Offset - varies by lens
- n/a
- Projection Distance varies by lens
- n/a
- Projection Distance Wide varies by lens
- n/a
- Projection Distance Wide Tele varies by lens
- n/a
- Projection Lens F Number to
- 1.6
- Projection Lens F Number varies by lens
- n/a
- Projection Lens Focal Length (To)
- 3.7 mm
- Projection Lens Focal Length (varies by lens)
- n/a
- Projection Lens Focus
- Manual
- Projection Lens Focus (varies by lens)
- n/a
- Screen Size from
- 60 in
- Screen Size to
- 100 in
- Screen Size varies by lens
- n/a
- Throw Ratio from
- 0.25
- Throw Ratio to
- 0.35
- Zoom factor (from)
- 1
- Zoom factor (to)
- 1.35
- Power cable
- Pen Holder/Stand
- Interactive pens
- 2 x Pen tip(Teflon)
- 4 x Pen tip(Felt)
- USB cable
- Remote control incl. batteries
- Quick Start Guide
- Projector feet
- Warranty document
- Corner markers for auto screen adjustment
